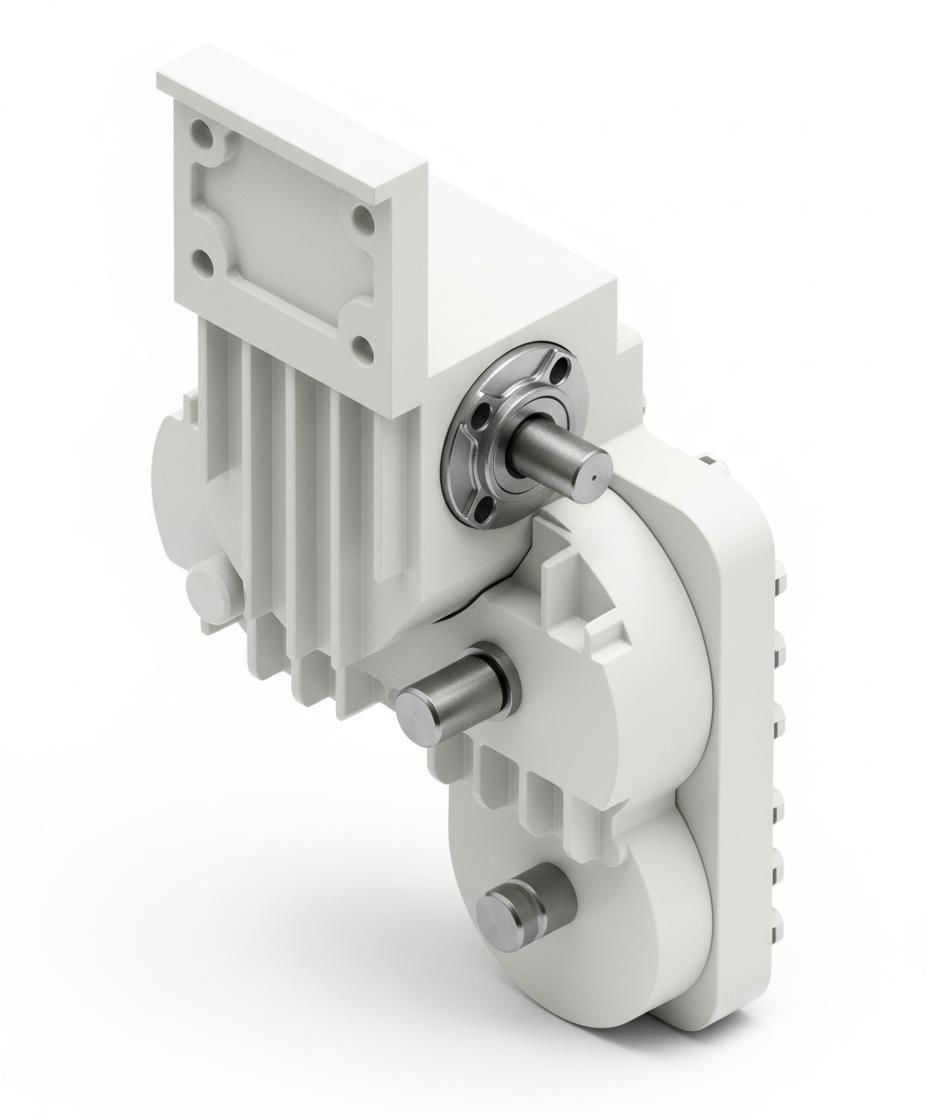

0242B GEAR BOX TYPE 55, 1:15 3R Hypermac, Hypermac+

Gearbox for Leadermac Hypermac and Hypermac+ machinery. Reference 0242B; type 55, 3R configuration and listed ratio 1:15. Compare the original gearbox.

Manufacturer: Leadermac

Availability: 1 in stock

SKU: 0242B-LMC

€725.00 excl tax

Qty:

Gearbox for Leadermac Hypermac and Hypermac+ machinery. Reference 0242B; type 55, 3R configuration and listed ratio 1:15. Compare the original gearbox.

Product details

Part reference: 0242B
Gearbox type: 55
Configuration as listed: 3R
Ratio as listed: 1:15
Listed models: Hypermac, Hypermac+
Store SKU: 0242B-LMC

Before ordering

Compare the complete type 55 / 3R specification, ratio, shaft arrangement and mounting dimensions with the existing gearbox.

Need help identifying the correct part? Contact us with your machine model, serial number and photos or markings from the existing part.
